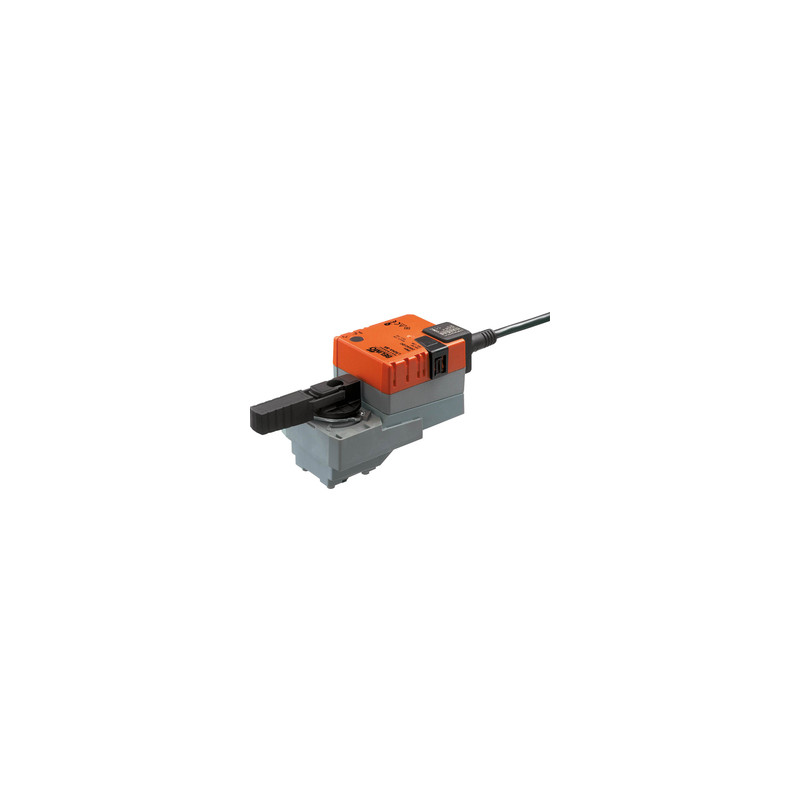

Belimo LR24A-SR Ball valf altuator, 5 nm
€282.00
€126.90
Save 55%
Tax included

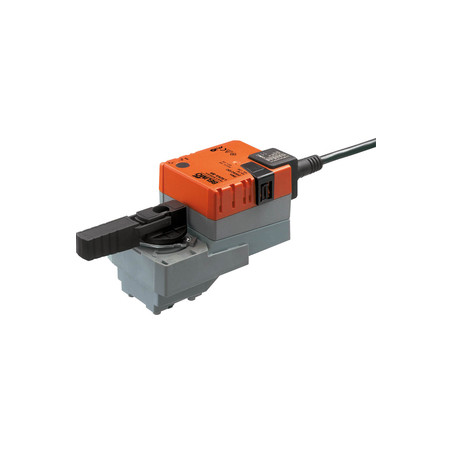

Belimo LR24A-SR Rotary actuator, 5 Nm, AC/DC 24 V, 2...10 V, 90 s, IP54
Specifications
- Voltage AC/DC : AC/DC 24 V
- Power consumption (running) : 1.5 W
- Power consumption (holding) : 0.4 W
- Power Consumption For Wire Sizing : 3 VA
- Connection Supply Control : Cable 1 m, 4x 0.75 mm²
- Torque : 5 Nm
- Control type : DC 2...10 V
- Manual override : With push-button, can be locked
- Running time (motor) : 90 s / 90°
- Protection category : IP54
- Degree Of Protection: NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -30...50°C [-22...122°F]
LR24A-SR
