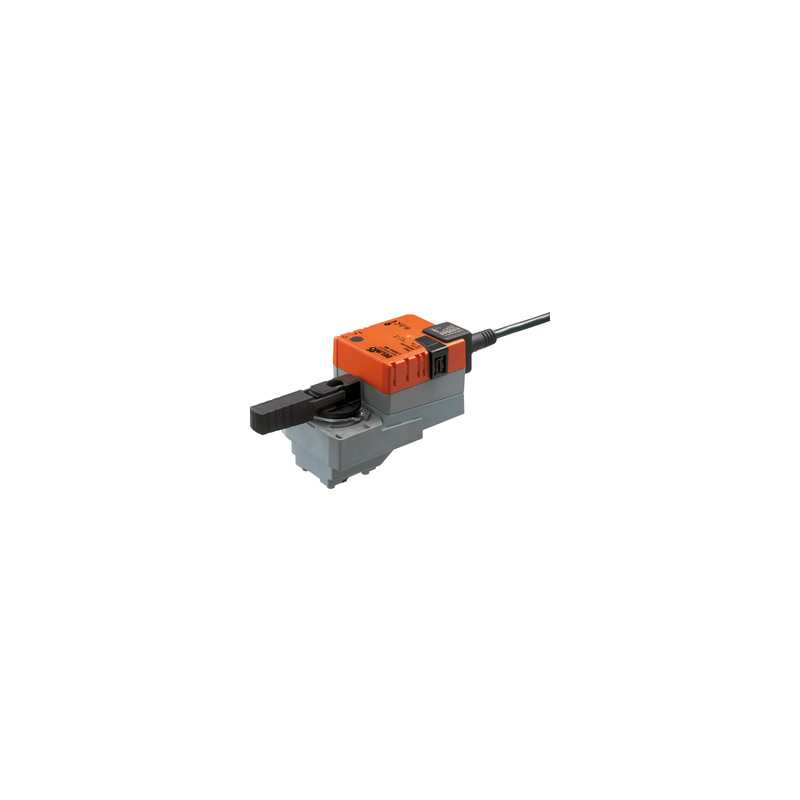

Belimo NR230A Ball valf altuator, 10 nm
€272.40
€122.58
Save 55%
Tax included

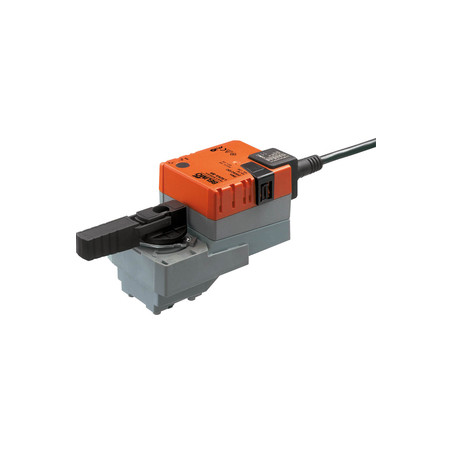

Belimo NR230A Rotary actuator, 10 Nm, 100-240v , 90 s, IP54
Specifications
- Voltage : AC 100...240 V
- Power consumption (running) : 3 W
- Power consumption (holding) : 0.6 W
- Power Consumption For Wire Sizing : 7 VA
- Connection Supply Control : Cable 1 m, 3x 0.75 mm²
- Torque : 10 Nm
- Control type : Open Close , 3-point
- Manual override : With push-button, can be locked
- Running time (motor) : 90 s / 90°
- Protection category : IP54
- Degree Of Protection: NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Temperature : -30...50°C [-22...122°F]
NR230A
